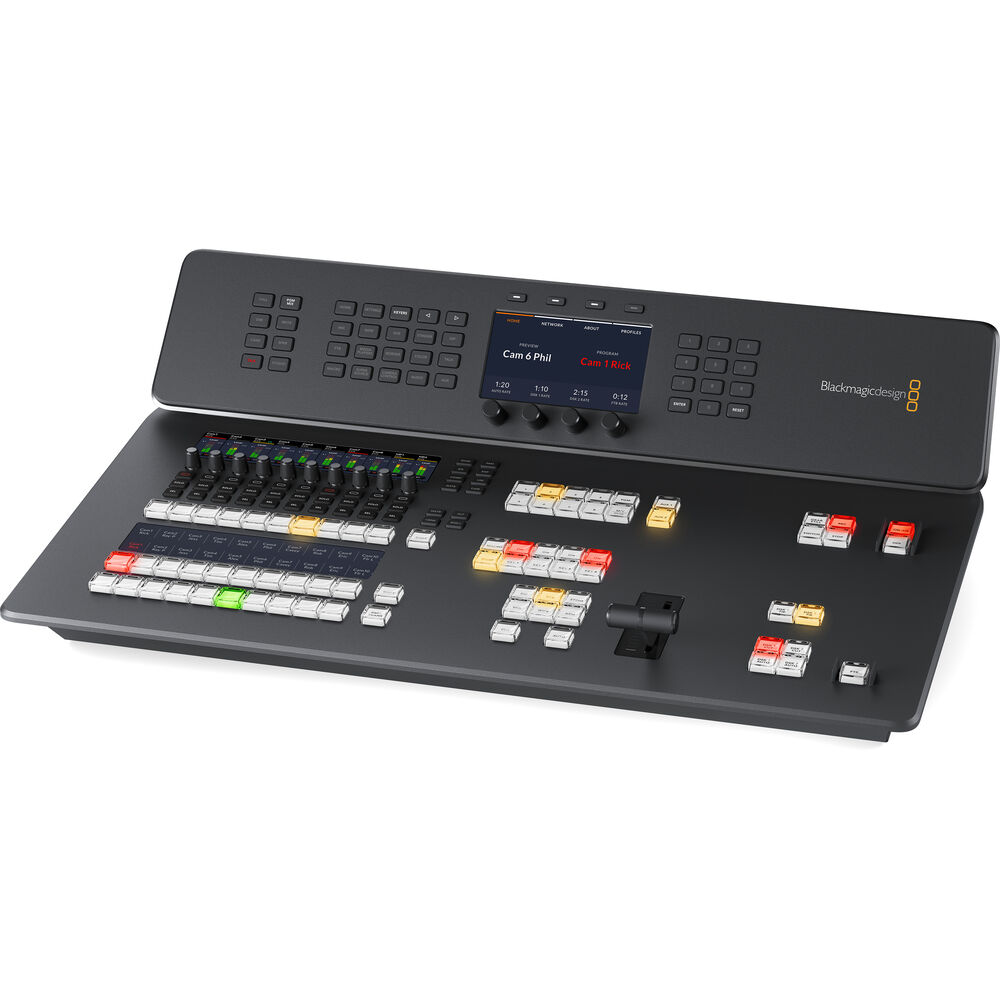

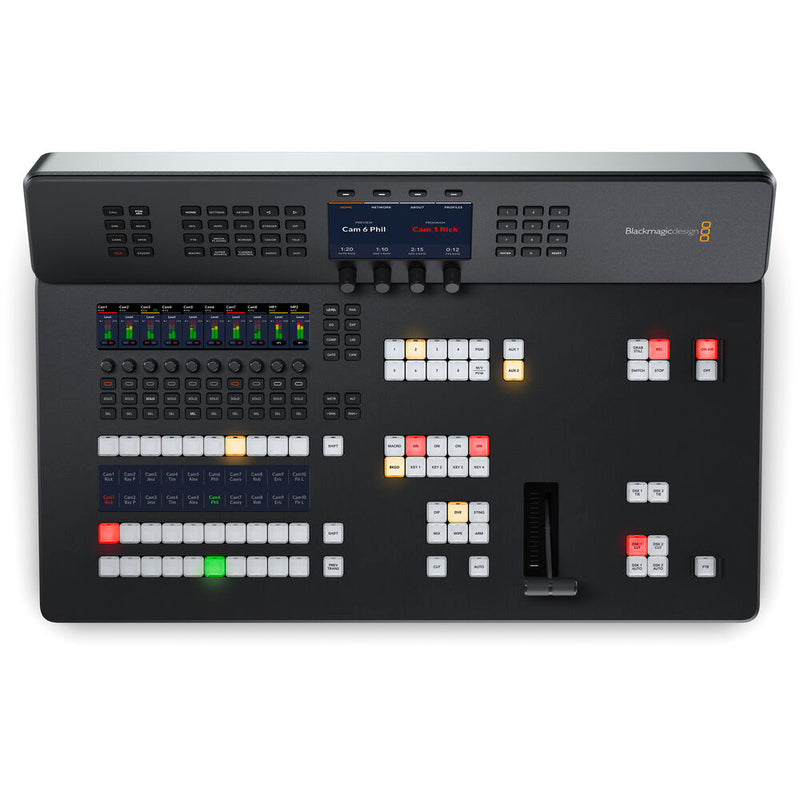

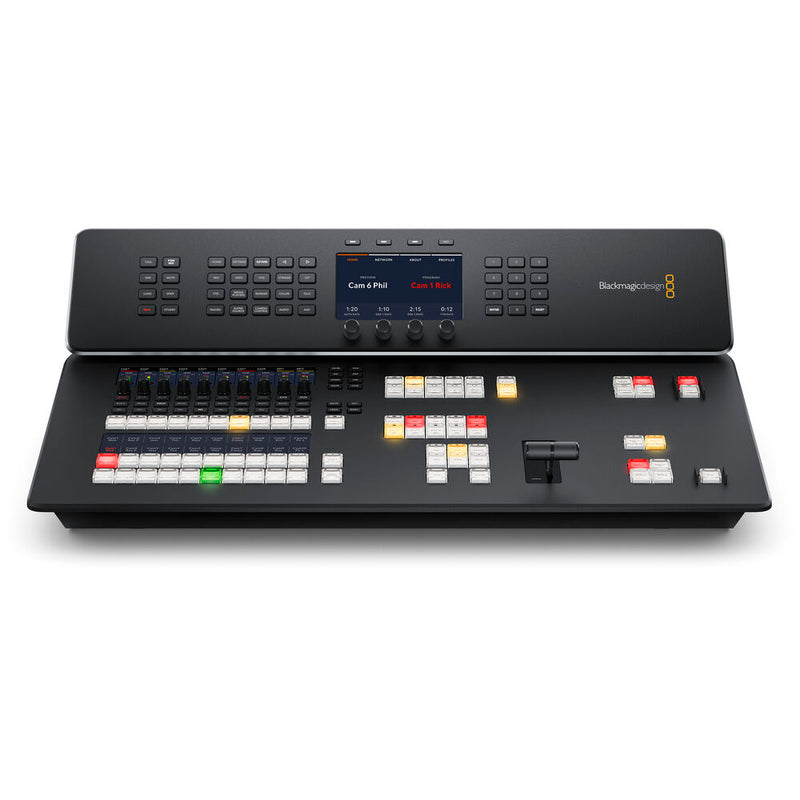

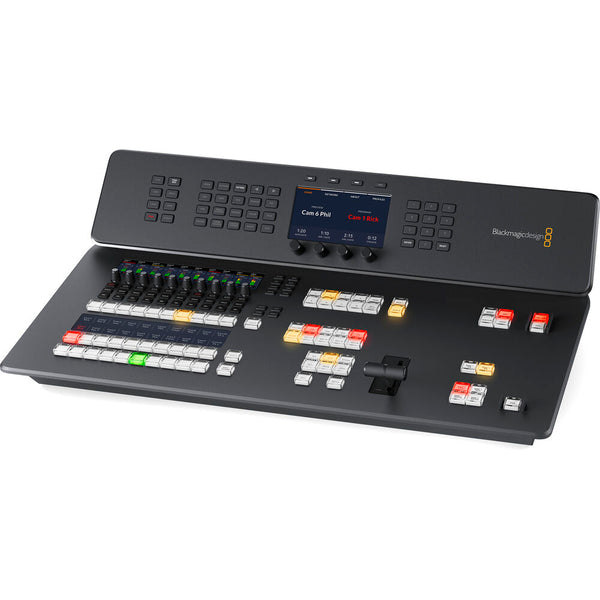

Blackmagic Design ATEM Television Studio HD8
GH₵69,599.00
Product Highlights
- 8-Input 3G-SDI 1080p60 Live Switcher
- Redesigned Buttons and Layout
- Streaming Support, USB & M.2 Recording
- Blackmagic Cloud Integration
- Webcam Support, Runs Blackmagic OS
- Up to 16 Multiview Output Sources
- Audio Mixing, Transitions, T-Bar, AUX
- Customizable Electronic LCDs
- Studio Camera Control
- Timecode, MADI, Talkback
Specs
Blackmagic Design ATEM HD8Specs
| Available ME Layers | 4 ME |
| Effect Types |
1 xDVE, Stinger 4 xChroma Key 7 xLuma Key |
| Downstream Keys | 2 xChroma, Luma, DVE |
| Generators |
7 xPattern 2 xColor |
| Audio Mixing | 58-Channel Mixing |
Processing
| Switching Type | Pushbutton, Software, T-Bar |
| Processing Resolution | 1080p at 60 |
| Color Processing | 10-Bit 422 RGB |
Input
| Number of Video Input Sources | 8 |
| Video Inputs | 8 xBNC (3G-SDI) Female |
| Input Video Format |
SDI (10-Bit 422 RGB) 1080p at 23.98242529.97305060 fps 1080i at 5059.9460 fps 720p 5059.9460 fps |
| Audio Inputs |
1 xBNC MADI Female 1 x2RCA Stereo Analog Female 2 xXLR 3-Pin Analog Female 1 xXLR 5-Pin Female |
| Embedded Audio Input | SDI |
Output
| Video Output Channels | 8 |
| Video Outputs | 8 xBNC |
| Output Video Format |
SDI (10-Bit 422 RGB) 1080p at 23.98242529.97305059.9460 fps 1080i at 5059.9460 fps 720p at 5059.9460 fps |
| Audio Outputs | 2 x14" TRS Stereo Analog Female |
| Embedded Audio Output | SDI |
| Multiview Output | 16-Way Multiview |
| Monitor Output | 1 xHDMI |
Connectivity
| Other IO |
1 xBNC Reference Input 1 xBNC Reference Output 1 xBNC Timecode 1 xBNC Timecode 4 xRJ45 LAN InputOutput 1 xRJ45 Talkback InputOutput 1 xRJ12 Remote InputOutput 2 xUSB-C Output |
| Video Standard Compliance | SMPTE 292M296M424M425M-A425M-B |
| IP Video |
H.264 1920 x 1080 at 60p Encoding |
| Transport Protocols | RTMP, TCPIP |
Hardware
| OS Compatibility | macOS 12 to 13 or Later Windows 10 to 11 *As of February, 2023 Check with manufacturer for the most up-to-date compatibility |
| Wi-Fi | None |
| Bluetooth | None |
| Power IO |
1 xIEC C14 (100 to 240 VAC) Input 1 xXLR 4-Pin (12 VDC) Input |
| Power Consumption | Device 100 W |
Environmental
| Operating Temperature | 32 to 104F 0 to 40C |
| Storage Temperature | -4 to 140F -20 to 60C |
| Operating Humidity | 0 to 90% |
| Storage Humidity | 0 to 90% |
General
| Dimensions | 23 x 14.8 x 6.35" 58.4 x 37.6 x 16.13cm |
| Weight | 14.9lb 6.8kg |
