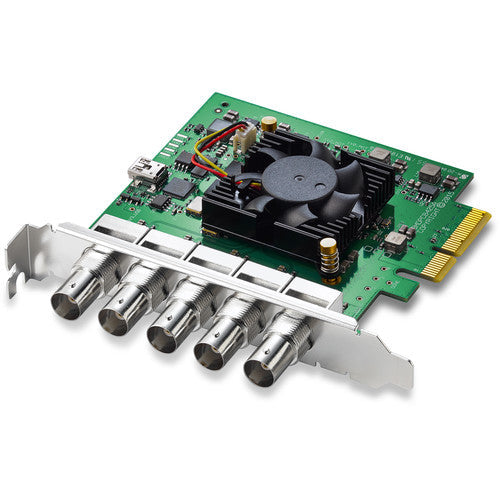

Blackmagic Design DeckLink Duo 2
GH₵13,299.00
Product Highlights
- SDHD3G-SDI InputOutput
- PCI-E Interface
- 1080p 444 by Single-Link 3G-SDI
- 1012-Bit Processing
Specs
Blackmagic Design Duo 2Specs
| Host Connection | PCIe x4 (PCIe 2.0) |
Input
| Video Input Connectors | 4 xBNC (12G-SDI) Female |
| Input Video Format |
SDI (81012-Bit 444422 RGB, YUV) 1080p 23.98242529.97305059.9460 fps 1080PsF 23.98242529.9730 fps 1080i 5059.9460 fps 720p 5059.9460 fps PAL 50 fps NTSC 60 fps |
| Audio Input Connectors | None |
| Input Audio Format | Analog 48 kHz 24-Bit |
| Embedded Audio Input | SDI 16-Channel |
Standards
| Video Standard Compliance | SMPTE 259M292M296M372M425M ITU -R BT.601BT.656 |
Connectivity
| Other IO | 1 xBNC Blackburst, Reference, Tri-Level Sync Input |
Hardware
| OS Compatibility | Windows 7 or Later macOS 10.14 or Later Linux |
Power
| Power Consumption | 10 W |
General
| Certifications | C-Tick, CE, FCC, as per Manufacturer |
| Dimensions | 3.7" 9.4cm |
| Weight | 5.64oz 160g |
| Warranty Length | Limited 3-Year Warranty |
Packaging Info
| Package Weight | 0.54 lb |
| Box Dimensions (LxWxH) | 5.65 x 5.55 x 1.2" |
