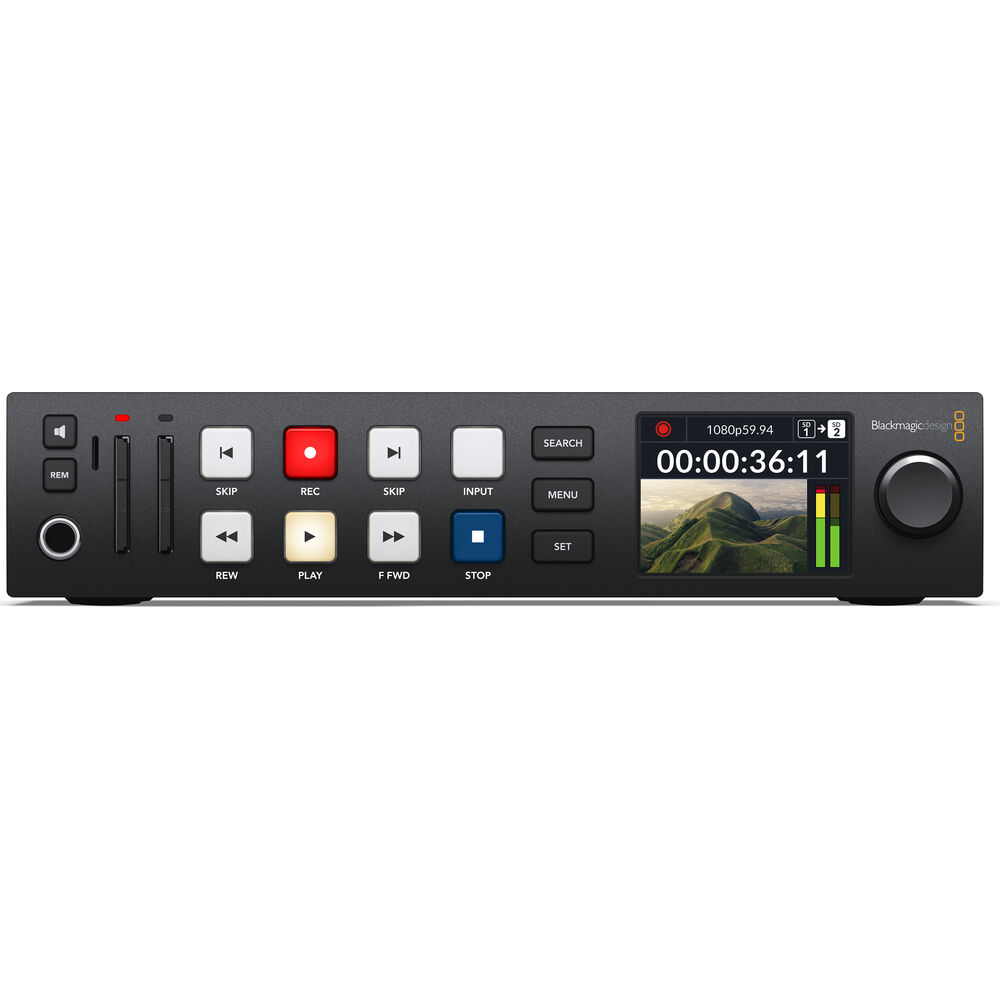

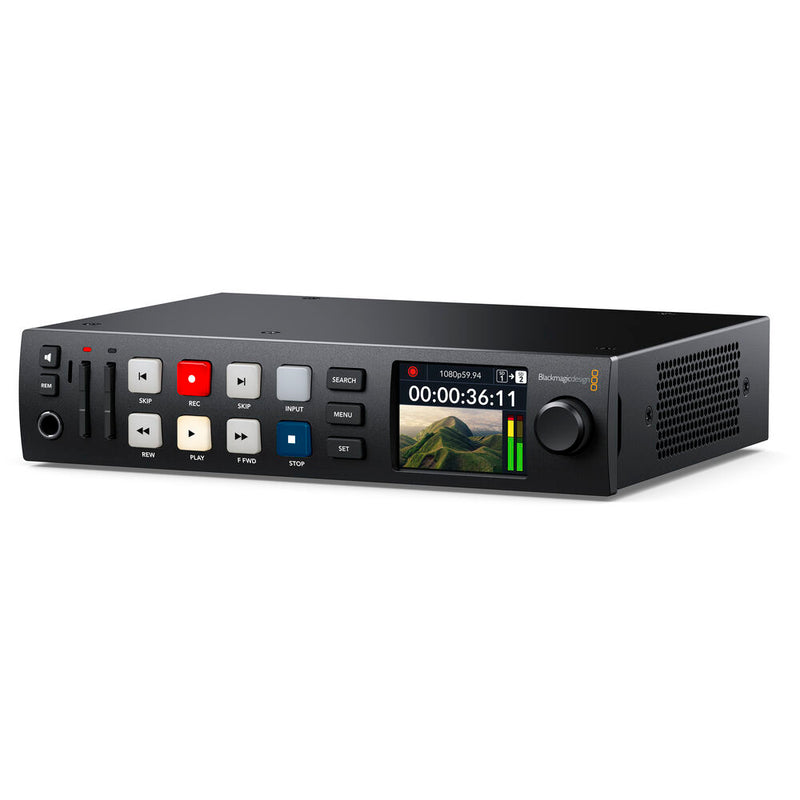

Blackmagic Design HyperDeck Studio HD Plus
GH₵14,295.00
Product Highlights
- Records up to 4K DCI at 30 fps
- Plays Back up to 3840 x 2160 at 30 fps
- 1 x 6G-SDI Input, 1 x HDMI 2.0 Input
- 1 x HDMI 2.0 and 2 x 6G-SDI Outputs
- Records ProRes, DNxHD, and H.264
- Records in H.264 SDI 422 10-Bit
- Front-Panel Buttons, Jog Wheel, LCD
- Timecode and Reference InputOutput
- 13 Rack-Mountable Form Factor
- USB Type-C, 1G Ethernet, RS-422
Specs
Blackmagic Design HyperDeck Studio HD PlusSpecs
Connectivity
| Video Input | 1 x BNC,6G-SDI 1 x HDMI 2.0 Type A |
| Video Output | 1 x BNC,6G-SDI Loop-Out 2 x BNC,6G-SDI 1 x HDMI Type A, 2.0 1 x USB Type-C (Webcam or External Recording of SD, HD, 2K DCI) 1 x BNC, 3G-SDI (Monitor Out) |
| Timecode | In 1 x BNC Out 1 x BNC |
| Reference |
Tri-Sync or Black Burst Input Connector 1 x BNC Output Connector 1 x BNC |
| Audio Input | None (Embedded Audio Only, 16 Channels) |
| Audio Output | Headphone 1 x 14" Phone |
| Device Control | 2 x RS-422 Deck Control Port on DB9 Female |
| Ethernet | 1 x RJ45 for Remote Operation |
| Media Interface | 2 x SD Slots Media Type UHS I and UHS II Format ExFAT or HFS+ |
Standards
| Supported Resolutions |
4K 4096 x 2160p 3029.97252423.98 3840 x 2160p 3029.97252423.98 2K 2048 x 1080p 029.97252423.98 HD 1920 x 1080p 6059.94503029.97252423.98 1920 x 1080i 6059.9450 1280 x 720p 6059.9450 SD NTSC PAL |
| SDI Compliance | SMPTE 259M292M296M372M424M425M Level A and B SMPTE 2084 SMPTE 21081 |
| SDI Metadata Support | HD RP188 and Closed Captioning CEA708 HDR Metadata Supported on SDI |
| Video Sampling | 422 YUV |
| Color Depth | 10-Bit |
| Color Space | Rec. 601 Rec. 709 Rec. 2020 33-Point 3D LUTS Can Be Applied to SDI Monitor Out |
| HDR Support | Hybrid LogGamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 |
| Multi Rate Support | Autodetection of SD, HD, and 6G-SDI |
| Audio Sampling | Television Standard 48 kHz, 24-Bit |
| Supported Codecs |
ProRes HQ QuickTime 422 QuickTime LT QuickTime Proxy QuickTime for Formats up to 1080p60 DNxHD 220x 220x MXF 145 145 MXF 45 45 MXF for 720p and 1080p HD Formats up to 60 fps H.264 SDI 422 10-Bit High 420 8-Bit Medium 420 8-Bit Low 420 8-Bit for Progressive Formats up to 1080p60 |
System Requirements
| Operating System | macOS 10.15 (Catalina), 11.5 (Big Sur) or Later Windows 10 64-Bit |
General
| Rack Height | 1 RU |
| Power Supply |
AC 100 to 240 VAC, 5060 Hz DC 12 VDC; 1 x 4-Pin XLR Consumption 100 W Max |
| Operating Temperature | 32 to 104F 0 to 40C |
| Storage Temperature | -4 to 140F -20 to 60C |
| Relative Humidity | 0 to 90% Non-Condensing |
| Dimensions | 8.27 x 6.96 x 1.74" 21.01 x 17.68 x 4.42 cm |
| Weight | 1.8 lb 0.82 kg |
