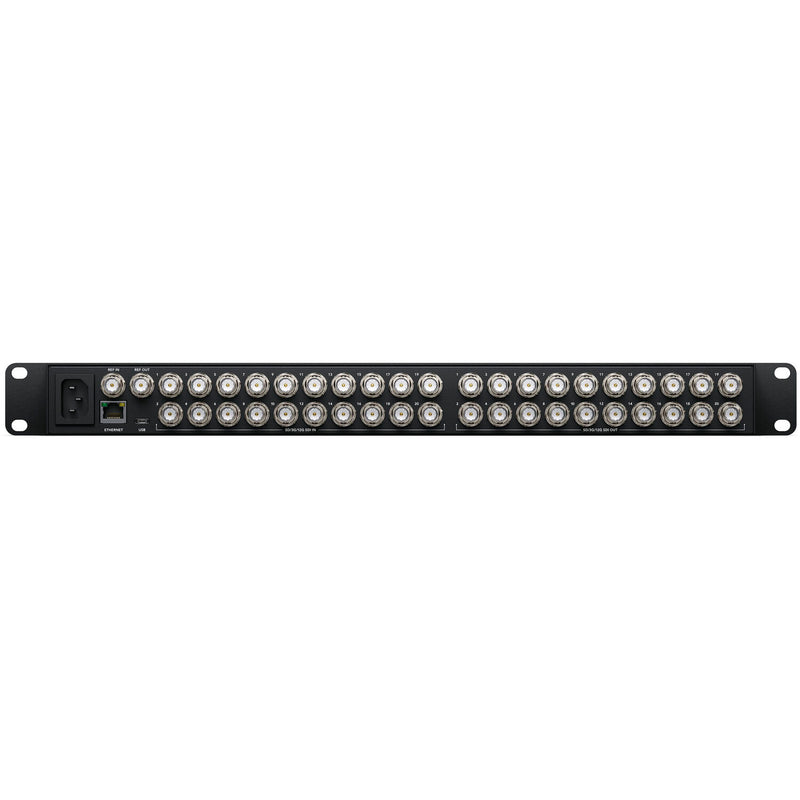

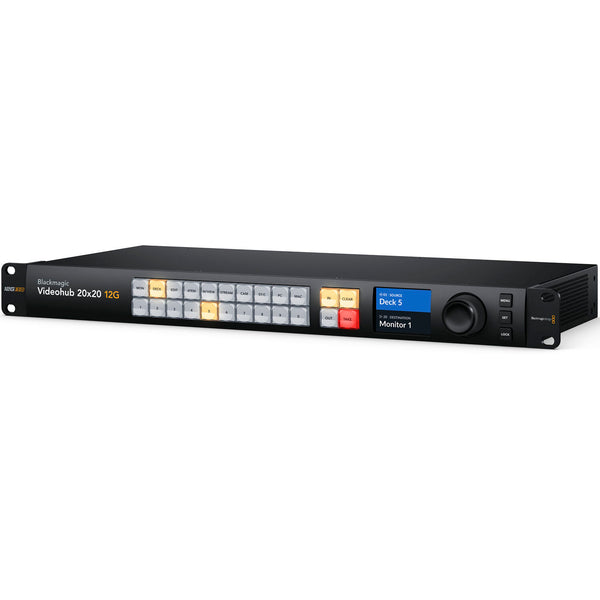

Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router
GH₵63,985.00
Skip to product information
Product HighlightsZero-Latency Routing Switcher20 x 12G-SDI Inputs20 x 12G-SDI OutputsSupports Up to DCI 4K60 VideoCombines SD, HD, UHD 4K & DCI 4K VideoPush-Button, Knob & Ethernet Control2.2" Front Panel LCD Status DisplaySDI Reclocking, Compact 1RU SizeIncludes Videohub MacWindows SoftwareSpecsBlackmagic Design VHUBSMAS12G2020SpecsProcessingSwitching TypePushbutton, SoftwareProcessing ResolutionDCI 4K at 60Color Processing8-Bit 42210-Bit 42212-Bit 444Audio Processing48 kHz 24-BitInputVideo Inputs20 xBNC (12G-SDI)Input Video FormatSDI (1012-Bit 444 RGB, YUV)DCI 4K up to 30 fpsUHD 4K up to 30 fpsDCI 2K up to 60 fpsDCI 2KPsF up to 30 fps1080p up to 60 fps1080PsF up to 30 fps1080i up to 60 fpsSDI (10-Bit 422 RGB, YUV)DCI 4K up to 60 fpsUHD 4K up to 60 fpsDCI 2K up to 60 fpsDCI 2KPsF up to 30 fps1080p up to 60 fps1080PsF up to 30 fps1080i up to 60 fps720p at 5059.9460 fps576i 625 lines at 50 fps480i 525 lines at 59.94 fpsEmbedded Audio InputSDIOutputVideo Outputs20 xBNC (12G-SDI)Output Video FormatSDI (1012-Bit 444 RGB, YUV)DCI 4K up to 30 fpsUHD 4K up to 30 fpsDCI 2K up to 60 fpsDCI 2KPsF up to 30 fps1080p up to 60 fps1080PsF up to 30 fps1080i up to 60 fpsSDI (10-Bit 422 RGB, YUV)DCI 4K up to 60 fpsUHD 4K up to 60 fpsDCI 2K up to 60 fpsDCI 2KPsF up to 30 fps1080p up to 60 fps1080PsF up to 30 fps1080i up to 60 fps720p at 5059.9460 fps576i 625 lines at 50 fps480i 525 lines at 59.94 fpsEmbedded Audio OutputSDIConnectivityOther IO1 xRJ45 LAN1 xUSB-CVideo Standard ComplianceSMPTE 259M292M296M372M424M425M-A425M-BST-2081-1ST-2081-10ST-2082-10ITU -R BT.601BT.656DisplayDisplay Size2.2"HardwareOS CompatibilitymacOS 12.0macOS 13.0 or LaterWindows 10 (64-Bit Only)Windows 11*As of April, 2023 Check with manufacturer for the most up-to-date compatibilityWi-FiNoneBluetoothNonePowerPower IO1 xIEC C14 (100 to 240 VAC) InputPower Consumption27.5 WEnvironmentalOperating Temperature32 to 104F 0 to 40CStorage Temperature-4 to 140F -20 to 60COperating Humidity0 to 90% (Non-Condensing)GeneralRack Form Factor1 RUDimensions19 x 9.3 x 1.74" 48.3 x 23.6 x 4.42cmWeight7.87lb 3.57kgProduct Highlights Zero-Latency Routing Switcher 20 x 12G-SDI Inputs20 x 12G-SDI Outputs Supports Up to DCI 4K60 Video Combines SD, HD, UHD 4K & DCI 4K Video Push-Button, Knob & Ethernet Control 2.2" Front Panel LCD Status Display SDI Reclocking, Compact 1RU Size Includes Videohub MacWindows Software SpecsProduct Highlights Zero-Latency Routing Switcher 20 x 12G-SDI Inputs20 x 12G-SDI Outputs Supports Up to DCI 4K60 Video Combines SD, HD, UHD 4K & DCI 4K Video Push-Button, Knob & Ethernet Control 2.2" Front Panel LCD Status Display SDI Reclocking, Compact 1RU Size Includes Videohub MacWindows Software Specs Blackmagic Design VHUBSMAS12G2020Specs Processing Switching Type Pushbutton, Software Processing Resolution DCI 4K at 60 Color Processing 8-Bit 42210-Bit 42212-Bit 444 Audio Processing 48 kHz 24-Bit Input Video Inputs 20 xBNC (12G-SDI) Input Video Format SDI (1012-Bit 444 RGB, YUV)DCI 4K up to 30 fpsUHD 4K up to 30 fpsDCI 2K up to 60 fpsDCI 2KPsF up to 30 fps1080p up to 60 fps1080PsF up to 30 fps1080i up to 60 fpsSDI (10-Bit 422 RGB, YUV)DCI 4K up to 60 fpsUHD 4K up to 60 fpsDCI 2K up to 60 fpsDCI
Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router
GH₵63,985.00
Product Highlights
- Zero-Latency Routing Switcher
- 20 x 12G-SDI Inputs20 x 12G-SDI Outputs
- Supports Up to DCI 4K60 Video
- Combines SD, HD, UHD 4K & DCI 4K Video
- Push-Button, Knob & Ethernet Control
- 2.2" Front Panel LCD Status Display
- SDI Reclocking, Compact 1RU Size
- Includes Videohub MacWindows Software
Specs
Blackmagic Design VHUBSMAS12G2020Specs
Processing
| Switching Type | Pushbutton, Software |
| Processing Resolution | DCI 4K at 60 |
| Color Processing | 8-Bit 422 10-Bit 422 12-Bit 444 |
| Audio Processing | 48 kHz 24-Bit |
Input
| Video Inputs | 20 xBNC (12G-SDI) |
| Input Video Format |
SDI (1012-Bit 444 RGB, YUV) DCI 4K up to 30 fps UHD 4K up to 30 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps SDI (10-Bit 422 RGB, YUV) DCI 4K up to 60 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps 720p at 5059.9460 fps 576i 625 lines at 50 fps 480i 525 lines at 59.94 fps |
| Embedded Audio Input | SDI |
Output
| Video Outputs | 20 xBNC (12G-SDI) |
| Output Video Format |
SDI (1012-Bit 444 RGB, YUV) DCI 4K up to 30 fps UHD 4K up to 30 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps SDI (10-Bit 422 RGB, YUV) DCI 4K up to 60 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps 720p at 5059.9460 fps 576i 625 lines at 50 fps 480i 525 lines at 59.94 fps |
| Embedded Audio Output | SDI |
Connectivity
| Other IO |
1 xRJ45 LAN 1 xUSB-C |
| Video Standard Compliance | SMPTE 259M292M296M372M424M425M-A425M-BST-2081-1ST-2081-10ST-2082-10 ITU -R BT.601BT.656 |
Display
| Display Size | 2.2" |
Hardware
| OS Compatibility | macOS 12.0 macOS 13.0 or Later Windows 10 (64-Bit Only) Windows 11 *As of April, 2023 Check with manufacturer for the most up-to-date compatibility |
| Wi-Fi | None |
| Bluetooth | None |
Power
| Power IO | 1 xIEC C14 (100 to 240 VAC) Input |
| Power Consumption | 27.5 W |
Environmental
| Operating Temperature | 32 to 104F 0 to 40C |
| Storage Temperature | -4 to 140F -20 to 60C |
| Operating Humidity | 0 to 90% (Non-Condensing) |
General
| Rack Form Factor | 1 RU |
| Dimensions | 19 x 9.3 x 1.74" 48.3 x 23.6 x 4.42cm |
| Weight | 7.87lb 3.57kg |
