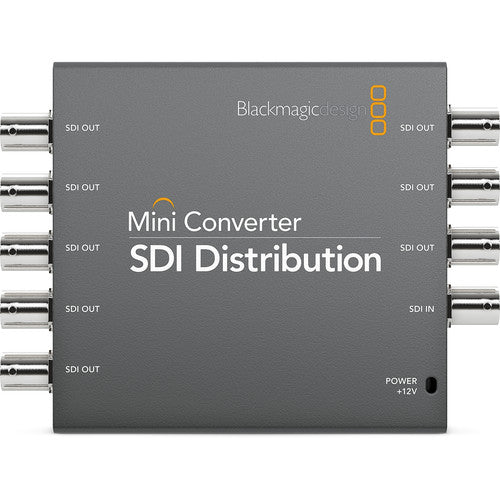

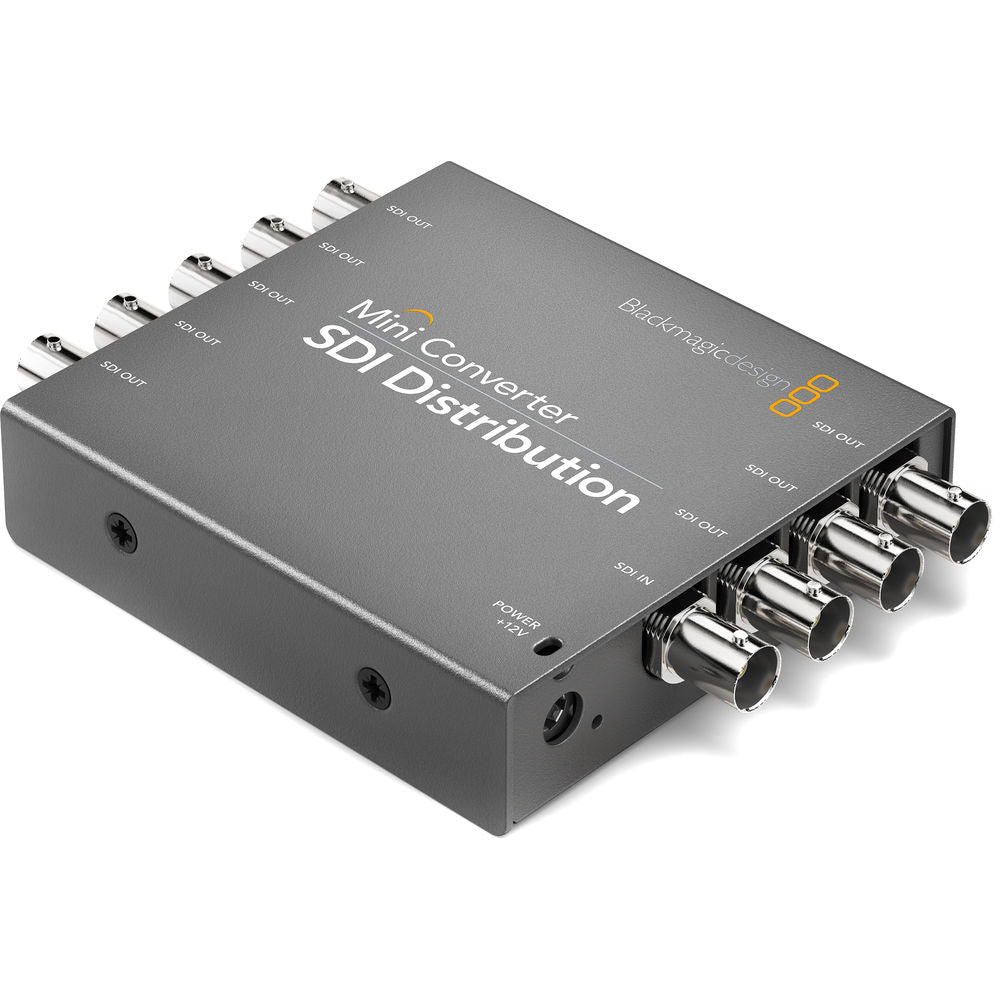

Blackmagic Design 1x8 Mini Converter SDI Distribution (SDI Splitter)
GH₵3,985.00
Product Highlights
- (1) SDI Input, (8) SDI Outputs
- 3GHDSD-SDI Auto-Switching Input
- Re-Clocked Outputs
- Ancillary Data & Embedded Audio
- 1080p & 2K Distribution
- Supports ASI Signals
Specs
Blackmagic Design Mini ConverterSpecs
| Inputs | 1x SDI Detects & auto-switches between SD-, HD-, and 3G-SDI |
| Outputs | 8x SDI Automatically match the SDI video input |
| Re-clocking | Yes |
| Supported Formats | NTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p, and 2K PsF |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M |
| Video Sampling | 422 and 444 |
| Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
| Color Precision | 422 and 444 |
| Color Space | YUV and RGB |
| ASI Support | Yes |
| Power Supply | 12V universal power supply included |
| Power Consumption | 110V 40mA 220V 20mA |
| Voltage Range | 12-30V |
Packaging Info
| Package Weight | 1.2 lb |
| Box Dimensions (LxWxH) | 5.6 x 5.4 x 2.6" |
