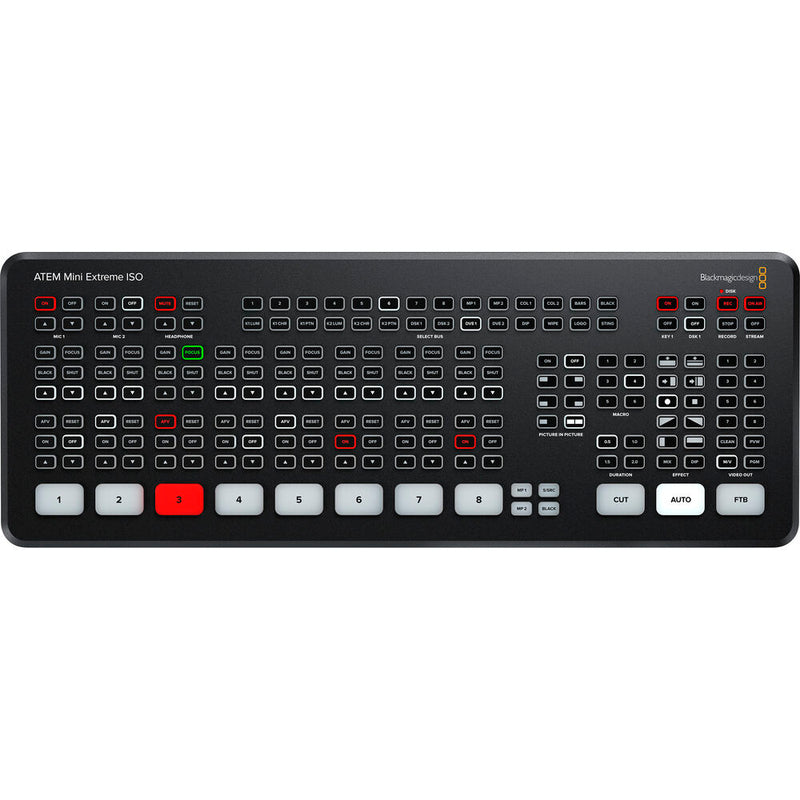

Blackmagic Design ATEM Mini Extreme ISO HDMI Live Stream Switcher (Video Mixer)
GH₵33,899.00
Product Highlights
- 8-Channel HDMI Live Streaming Switcher
- Supports up to 1080p60
- RTMP Streaming via Ethernet or USB-C
- Record Program Out and Individual Inputs
- 11-Input, 2-Channel Audio Mixer
- Input Frame Rate and Format Converter
- Re-Sync on All HDMI Inputs
- HD Multiview Output with up to 16 Views
- Local and Software Switching
- 4 x Upstream, 2 x Downstream Keyers
Specs
Blackmagic Design ATEM Mini ExtremeSpecs
Mix Effects
| Available ME Layers | 9 ME |
| Effect Types |
2 xDVE 4 xLuma Key 4 xChroma Key |
| Graphics Memory | 20 Images |
| Downstream Keys | 2 xChroma, Luma, DVE |
| Generators |
5 xPattern 2 xColor |
| Audio Mixing | 2-Channel Mixing |
Processing
| Switching Type | Pushbutton, Software |
| Processing Resolution | 1080p |
Input
| Number of Video Input Sources | 8 |
| Video Input Connectors | 8 xHDMI |
| Input Video Format |
HDMI (10-Bit 422 YUV) 1080p 23.98242529.97305059.9460 fps 1080i 5059.9460 fps 720p 5059.9460 fps |
| Audio Input Connectors | 2 x18" 3.5 mm TRS Stereo Analog Female |
| Input Audio Format | Analog |
| Embedded Audio Input | HDMI 2-Channel (per Input) |
Output
| Video Output Channels | 2 |
| Video Output Connectors | 2 xHDMI |
| Output Video Format |
HDMI (10-Bit 422 YUV) 1080p 23.98242529.97305059.9460 fps |
| Audio Output Connectors | 1 x18" 3.5 mm TRRS HeadphoneMicrophone Stereo Analog Female |
| Embedded Audio Output | HDMI 2-Channel |
| Multiview Output | 16-Way Multiview viaHDMI |

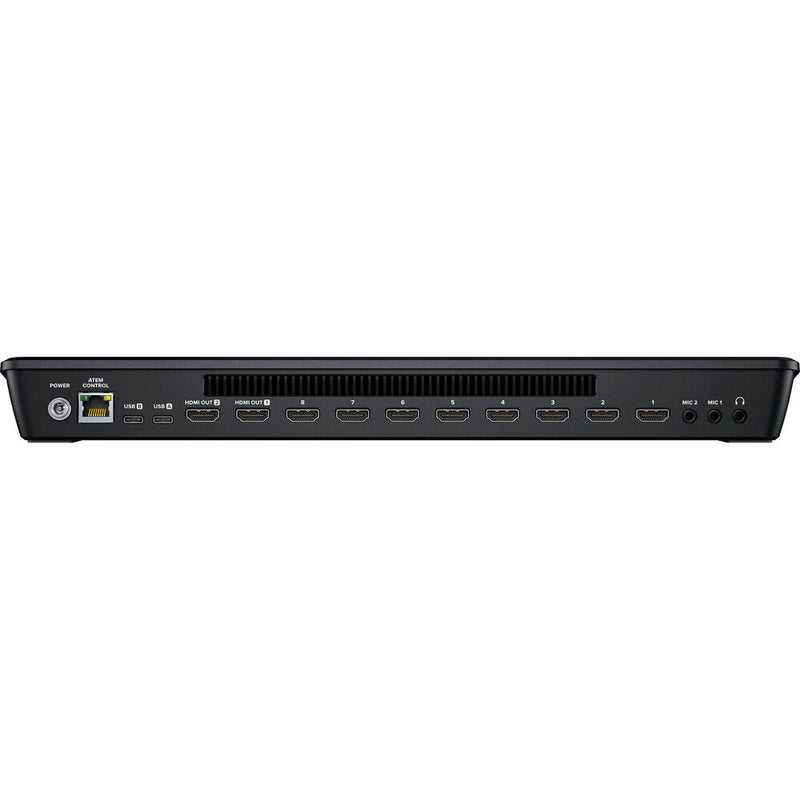

Connectivity
| Other IO |
1 xRJ45 2 xUSB Type-C |
| HDCP Support | None |
IP EncodingDecoding
| IP Video |
H.264 1920 x 1080 Encoding |
| Transport Protocols | RTMP |
| Simultaneous Streams | 1 Streams |
Internal Recording
| Recording Modes | 1920 x 1080p up to 60 fps (MP4) |
Hardware
| OS Compatibility | macOS 10.15 macOS 11.1 or Later Windows 10 |
Power
| Power Connector | 1 xBarrel (12 VDC) Input |
| Power Consumption | Device 36 W |
Environmental
| Operating Temperature | 41 to 104F 5 to 40C |
| Storage Temperature | 14 to 140F -10 to 60C |
| Operating Humidity | 0 to 70% |
General
| Dimensions | 14.56 x 5.37 x 1.56" 36.98 x 13.64 x 3.96cm |
| Weight | 2.72lb 1.23kg |
