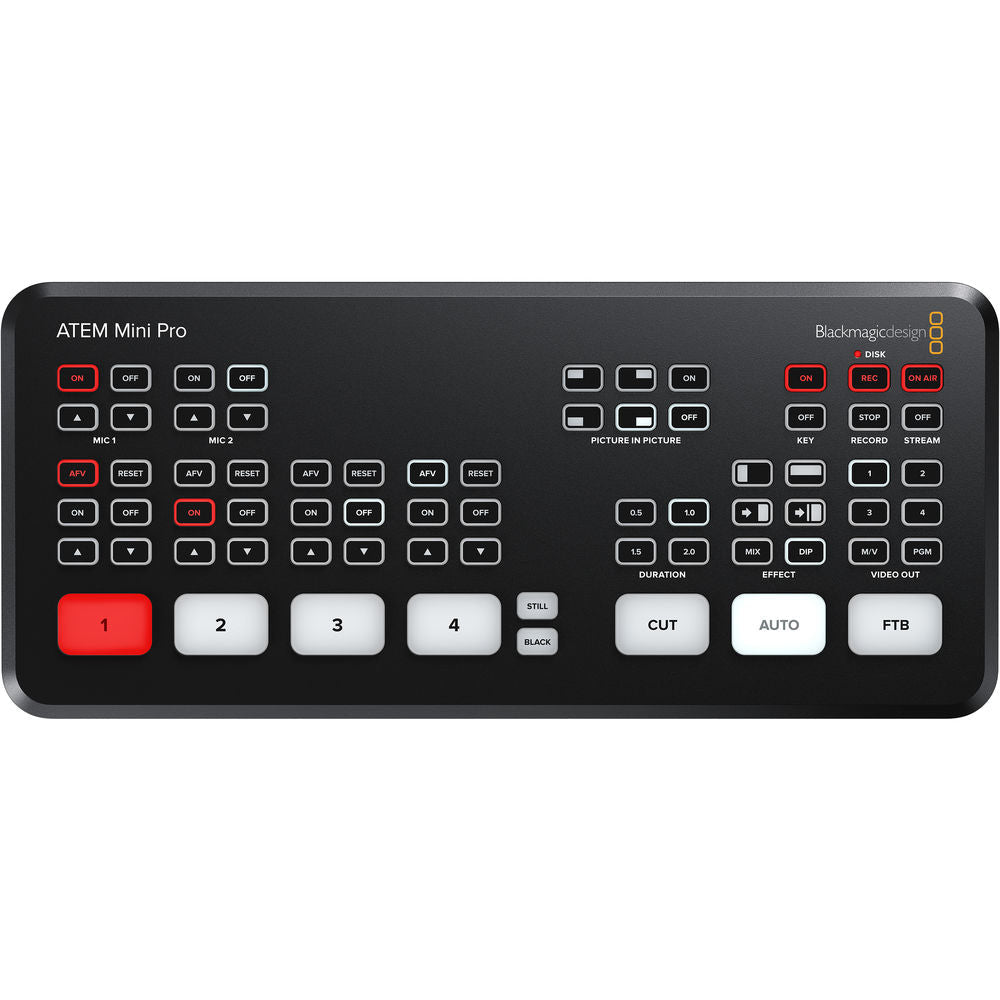

Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher (Video Mixer)
GH₵6,300.00
Product Highlights
- 4-Channel Live Stream HDMI Switcher
- Control up to Four BMPCC 6K4K Cameras
- Live Tally, Stream and Record Status
- Record Button, Channel Preview Multiview
Specs
Blackmagic Design ATEM Mini ProSpecs
Mix Effects
| Available ME Layers | 5 ME |
| Effect Types | 1 xDVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key |
| Downstream Keys |
1 xChroma, DVE 2 xLuma |
| Audio Mixing | 2-Channel Mixing |
Processing
| Switching Type | Pushbutton |
Input
| Number of Video Input Sources | 4 |
| Video Input Connectors | 4 xHDMI Female |
| Input Video Format |
HDMI (10-Bit 422 YUV) 1080p 23.98242529.97305059.9460 fps 1080i 5059.9460 fps 720p 5059.9460 fps |
| Audio Input Connectors | 2 x18" 3.5 mm TRS Stereo Analog Female |
| Embedded Audio Input | HDMI 2-Channel (per Input) |
Output
| Video Output Channels | 1 |
| Video Output Connectors | 1 xHDMI |
| Output Video Format |
HDMI RJ45 (10-Bit 422 YUV) 1080p 23.98242529.97305059.9460 fps |
| Embedded Audio Output | HDMI 2-Channel (per Output) |
| Multiview Output | Yes |
| Monitor Output | 1 xHDMI |

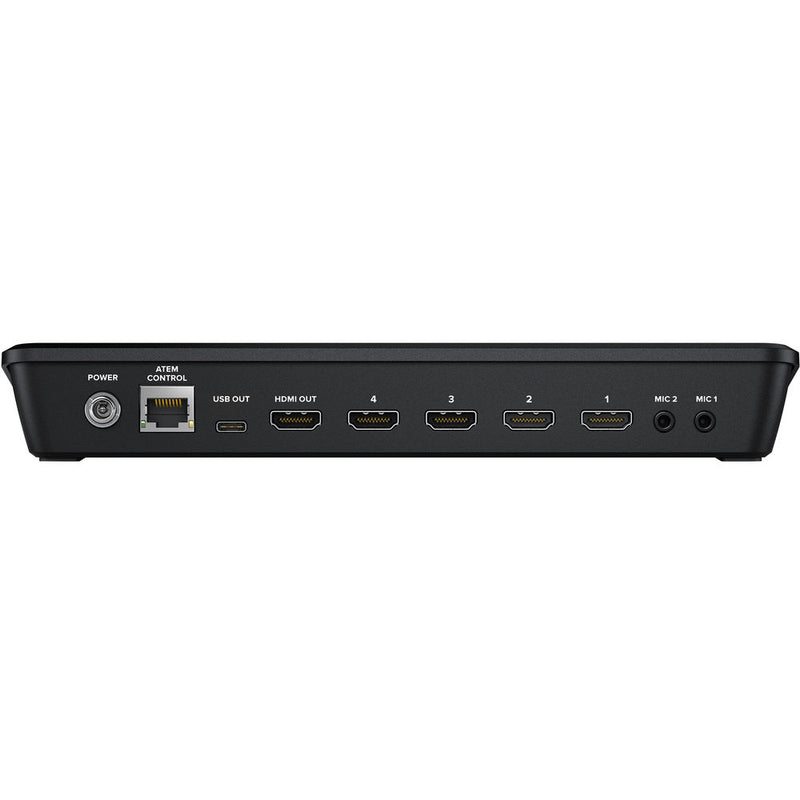

Connectivity
| Other IO |
1 xRJ45 LAN, Sync, Tally, Timecode, Firmware, Control InputOutput 1 xUSB Type-C Firmware, Control InputOutput |
Hardware
| OS Compatibility | macOS 10.14 or Later Windows 10 |
Power
| Power Connector | 1 xBarrel (12 VDC) Input |
| Power Consumption | 36 W |
Environmental
| Operating Temperature | 41 to 104F 5 to 40C |
| Storage Temperature | 14 to 140F -10 to 60C |
| Operating Humidity | 0 to 90% |
General
| Dimensions | 9.35 x 4.07 x 1.38" 23.75 x 10.34 x 3.51cm |
| Weight | 19.4oz 550g |
