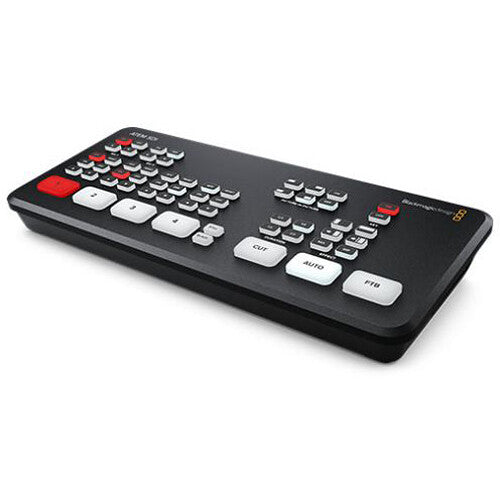

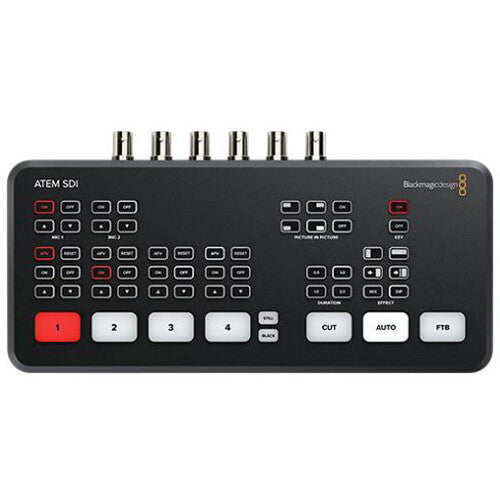

Blackmagic Design ATEM SDI Switcher (Video Mixer)
GH₵6,995.00
Product Highlights
- 4-Channel Live Stream 3G-SDI Switcher
- InputOutput up to 1080p60 10-Bit 422
- 2-Channel Digital Audio Mixer
- 2 x 3G-SDI Output, Ethernet ATEM Control
- Media Player, Computer Input Support
- Upstream and Downstream Keyers
- DVE Transition, ChromaLuma Keyers
- Color and Pattern Generators
- USB Type-C StreamingWebcam Output
Specs
Blackmagic Design ATEM SDISpecs
| Available ME Layers | 5 ME |
| Effect Types | DVE, Transition, Chroma Key |
| Generators |
1 xPattern 2 xColor |
| Audio Mixing | 2-Channel Mixing |
Processing
| Switching Type | IR Remote, Pushbutton, Software |

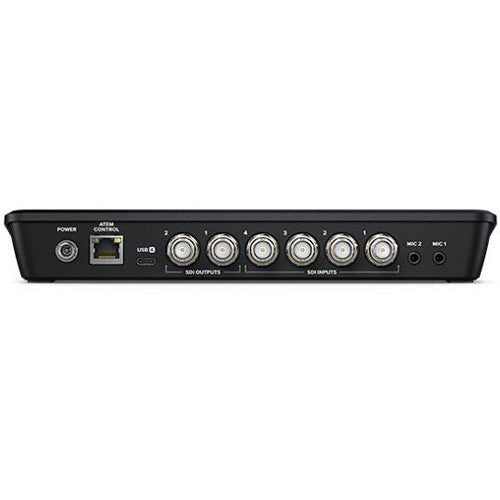

Input
| Number of Video Input Sources | 4 |
| Video Input Connectors | 4 xBNC (3G-SDI) |
| Input Video Format |
SDI (10-Bit 422 YUV) 1080p at 23.98242529.97305059.9460 fps 1080i at 5659.9460 fps 720p at 5059.9460 fps |
| Audio Input Connectors | 2 x18" 3.5 mm TRS Stereo Analog Female |
| Input Audio Format | Analog |
| Embedded Audio Input | SDI 2-Channel (per Input) |
Output
| Video Output Channels | 3 |
| Video Output Connectors | 2 xBNC (3G-SDI) (Program) |
| Output Video Format |
SDI (10-Bit 422 YUV) 1080p at 23.98242529.97305059.9460 fps USB Type-C (10-Bit 422 YUV) 1080p at 23.98242529.97305059.9460 fps |
| Embedded Audio Output | SDI |
| Multiview Output | None |
Connectivity
| Other IO | 1 xRJ45 Control InputOutput |
| HDCP Support | None |
Hardware
| OS Compatibility | macOS 11 macOS 12 or Later Windows 10 Windows 11 *As of July, 2022 Check with manufacturer for the most up-to-date compatibility |
| Power Connector | 1 xBarrel (12 VDC) Input |
| Power Consumption | Device 18 W |
Environmental
| Operating Temperature | 41 to 104F 5 to 40C |
| Storage Temperature | 14 to 140F -10 to 60C |
| Operating Humidity | 0 to 90% (Non-Condensing) |
General
| Dimensions | 9.35 x 4.67 x 1.38" 23.75 x 11.86 x 3.51cm |
| Weight | 23.9oz 678g |
Packaging Info
| Package Weight | 2.23 lb |
| Box Dimensions (LxWxH) | 11.2 x 7.9 x 2.6" |
