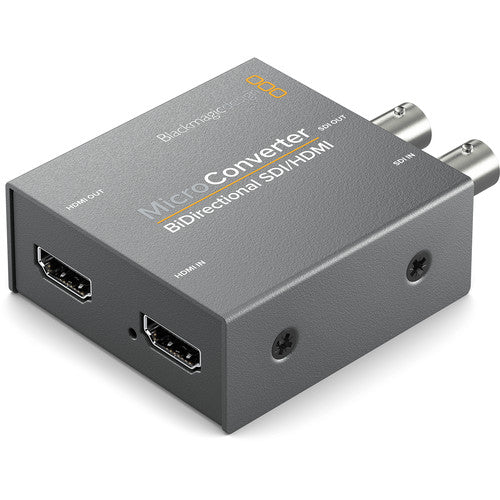

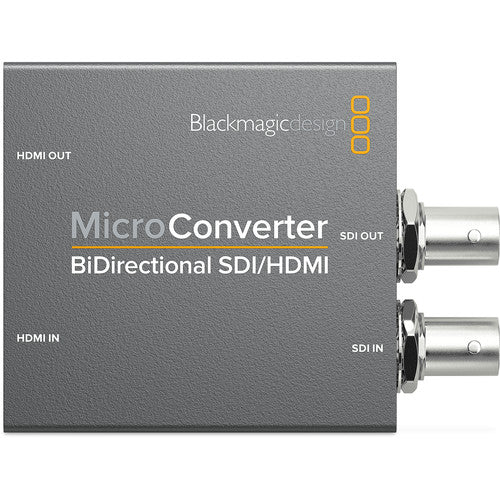

Blackmagic Design Micro Converter BiDirectional SDI/HDMI with Power Supply
GH₵1,505.00
Product Highlights
- Converts SDI to HDMI & HDMI to SDI
- Simultaneous Conversions
- 1 x Input & 1 x Output SDHD3G-SDI
- 1 x Input & 1 x Output HDMI
Specs
Blackmagic Design CONVBDCSDIHDWPSUSpecs
Connections
| Video Input | 1 x 3GHDSD-SDI 1 x HDMI type A |
| Video Output | 1 x 3GHDSD-SDI 1 x HDMI type A |
| Other IO | 1 x Micro-USB |
Standards
| Supported Video Standards | SDI 1080p 6059.94503029.97252423.98 1080i 6059.9450 720p 6059.9450 NTSC SD525i 59.94 PAL SD625i 50 HDMI 1080p 6059.94503029.97252423.98 1080i 6059.9450 720p 6059.9450 NTSC SD525i 59.94 PAL SD625i 50 |
| SDI Compliance | SMPTE 425M424M372M296M292M259M |
| Color Precision | SDI 422 HDMI 422 |
| SDI Color Space | SDI YUV HDMI YUV |
Operating System
| Supported Operating Systems | MacOS 10.12 Sierra MacOS High Sierra 10.13 or later Windows 8.1 Windows 10 |
Power
| Power Consumption | 2.5 W |
| Operational Voltage Range | 4.4 to 5.25 VDC |
Physical & Environmental
| Operating Temperature | 32 to 104F 0 to 40C |
| Storage Temperature | -4 to 140F -20 to 60C |
| Relative Humidity | 0 to 90%, non-condensing |
| Dimensions | 3.18 x 2.32 x 0.98" 8.1 x 5.9 x 2.5 cm |
| Weight | 6.13 oz 174 g |
Packaging Info
| Package Weight | 0.85 lb |
| Box Dimensions (LxWxH) | 5.75 x 4.85 x 2.75" |
